Building an IDOC integration solution need work and effort on both end SAP and BizTalk.
At SAP end the BASIS administrator need to create the BizTalk Account, Program ID, or Partner Profile, that will provide access to the various IDOCs which can be used by external application for processing. For further details you can refer the excellent post by Nino Crudele.
This post series mostly focus on what all need to be done at BizTalk end for processing IDOCs.
Why do any Organization choose BizTalk to integrate with SAP?
As mentioned by one of the BizTalk expert Kent Weare in his book, BizTalk often competes with PI when organizations start integrating SAP with other internal and external systems.
Organizations that choose to introduce BizTalk over SAP PI usually do so for some of the following reasons
- Scarcity of SAP PI resource
- Microsoft has an excellent online free resources
- In order to verify this, all one needs to do is start referring MSDN TechNet and BizTalk MSDN Forum as these are the best places where the experts in BizTalk community contribute and share their knowledge. The amount of BizTalk integration-related information is un-paralleled amongst BizTalk’s competitors.
- Consistent Development tool – Visual Studio
- Most of the BizTalk development task are done using Visual Studio. So both a BizTalk developer and a core .Net developer perform their development tasks in Visual Studio. Tasks like adding Service references and schema development are extremely similar between the two technologies.
The development tools on the SAP platform do not possess the sophistication and continual improvement that Visual Studio provides.
- Most of the BizTalk development task are done using Visual Studio. So both a BizTalk developer and a core .Net developer perform their development tasks in Visual Studio. Tasks like adding Service references and schema development are extremely similar between the two technologies.
- Productivity
- Refer the whitepapers which present the results of a study that compared Microsoft BizTalk Server to SAP XI for integrating heterogeneous systems.
What are IDOCs?
IDOC stands for Intermediate Document and is a SAP specification that is used for data transfer
- Between SAP systems
- Between SAP and external systems
- Can be inbound or outbound
- Can be traditional flat-file structure or XML
- Idocs support versioning and customization

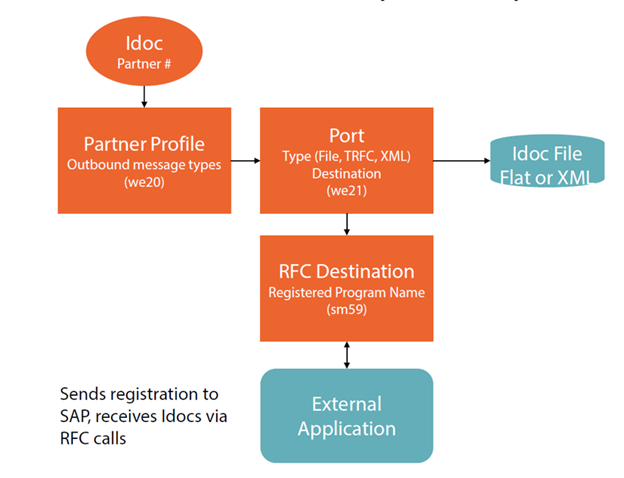

IDOC Flow Paths (outbound form SAP)

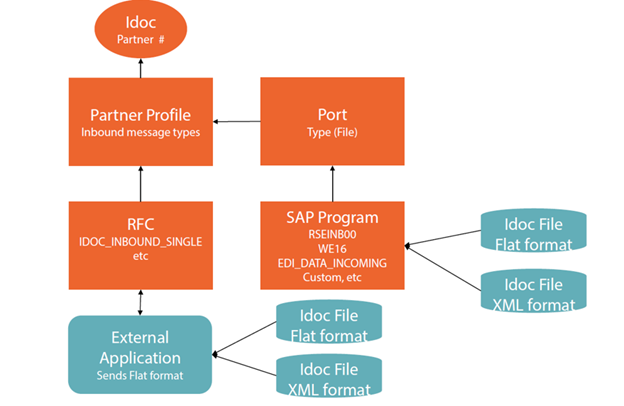

IDOC Flow Paths (inbound to SAP)
IDOC schemas generation
To generate the IDOC schema in BizTalk following information would be required.
- IDOC name

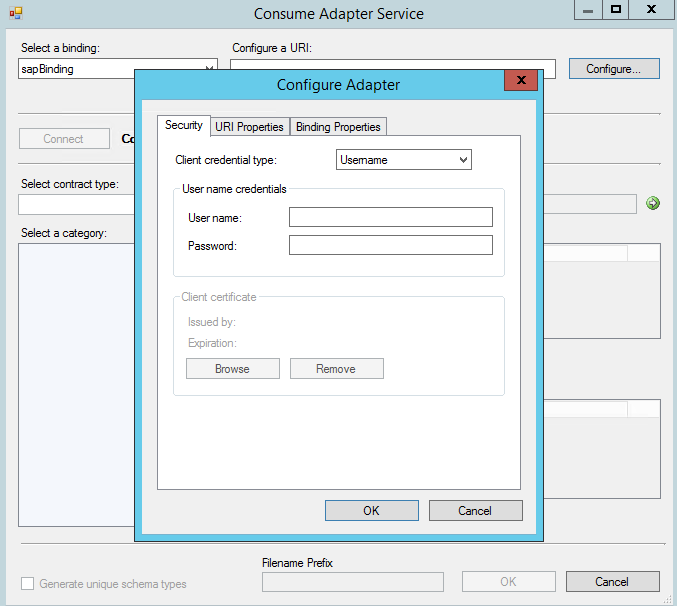

- Username & password with privilege to access the IDOC
- SAP Connection Information. Example – sap://CLIENT=100;LANG=EN;@a/sv-sap-dv1/00?GWHOST=sv-sap-dv1&GWSERV=sapgw00&ListenerProgramId=BIZTALKDEV&RfcSdkTrace=False&AbapDebug=False
Once you have the above details you can use Consumer Adapter Service (Add—Add Generated Items…Consume Adapter Service) to bring the configuration wizard

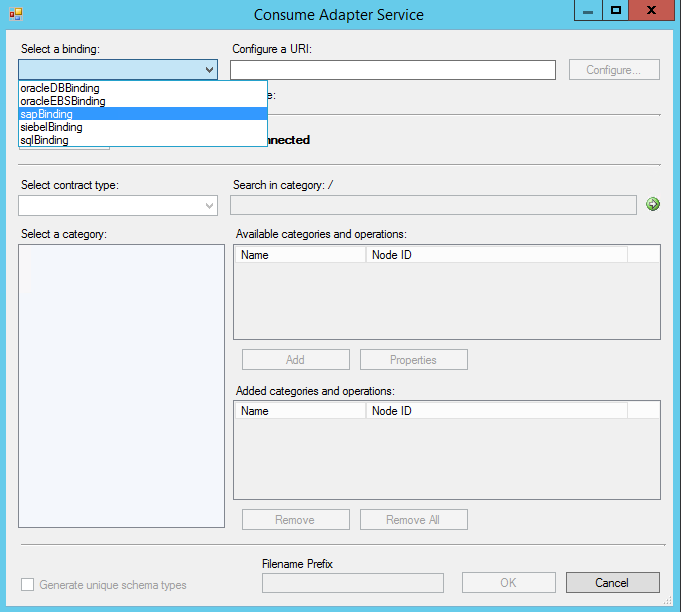

Use SAP Connection Information to configure the adapter service for SAP binding.
On we have configured the Wizard properly, we can now click the Connect button to establish a connection to SAP.
You need to select contract type depending on the operations you want to perform:

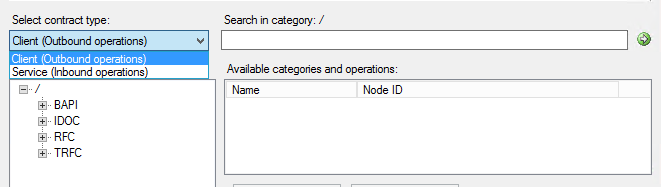

If you are sending an IDOC to SAP then you need to specify a Client (Outbound operations).

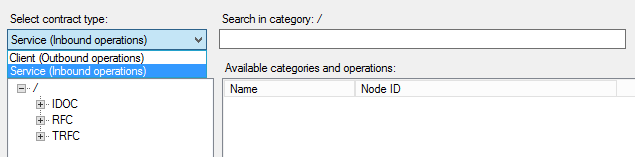

If you are receiving an IDOC from SAP then you need to specify a Client (Inbound operations).

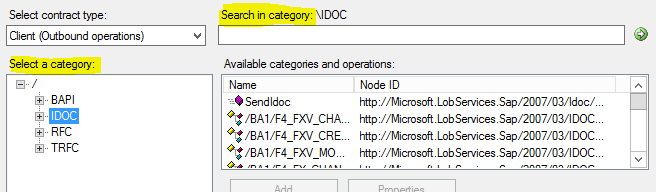

Now you need to focus on is the Search in category function. First you need to Select a category from the option available BAPI, IDOC, RFC, and TRFC . Here I have selected IDOC.

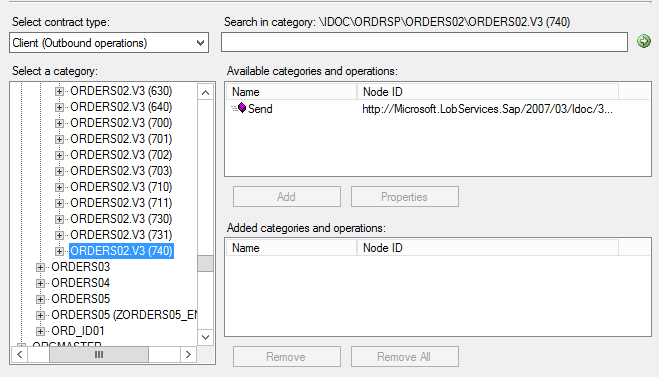

There can many different versions of the IDOC within the SAP systems. Select the version of the IDOC that you are interested in.
The Consume Adapter Service Wizard allows us to generate a single IDOC schema or multiple IDOCs at the same time. When dealing with multiple schemas, we can check the Generate unique schema types check box. By doing so additional schemas will be generated with unique namespaces.
Once OK button is clicked, you will see all the schemas and binding info files inside Visual Studio project.
Once the schemas are generated we can use them to receive / send IDOC from SAP by configuring the ports in BizTalk. I will cover that in next post.
